Arduino UNO 控制 8x8 LED @ 洛斯里克的夏天

先從簡單的LED控制開始吧
另外，因為我不是軟體出身，所以code寫得很爛，請多包涵:D

上面的影片，主要是利用Arduino的數位輸出腳，來控制8x8的LED
顯示0~9的字型

首先，利用手動來控制 8x8 LED發亮，並且了解一下腳位如何控制
這顆8x8 LED是在光華商場對面樓下的電子材料行買的
料號: LM12883SRWK 共陰極矩陣式8x8 LED

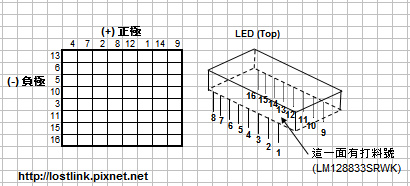

如何確認控制腳位? 先在excel框好8x8的格子

左邊的圖，上面那排是LED的正極(Anode)腳位4,7,2,8,12,1,14,9
左邊那排是LED的負極(Cathode)腳位13,6,5,10,3,11,15,16

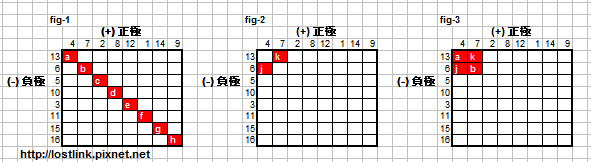

如果要讓第一行，第一列(a)的LED發亮，就要在腳位4灌電壓，腳位13下地
(b) = pin7 (+),pin6 (GND) 依此類推
但唯一的問題就是，因為這只有16支腳，若要同時間做出fig-2這種顯示是無法的
因為，當你亮(j) = pin4(+) , pin6(GND) , 同時要亮(k) = pin7(+) , pin13(GND)
這時候pin4(+) , pin13(-) = (a) , pin7(+) , pin6(GND) = (b)就會變成fig-3
不過這問題，稍後我們可以利用軟體的小技巧來達到fig-2的效果

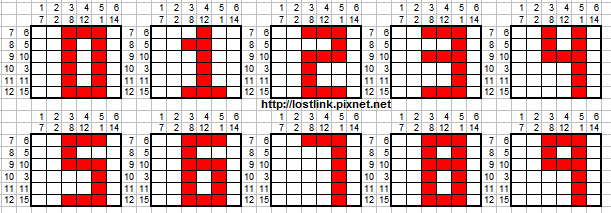

接下來在excel上面先畫好我們想要的字型，例如0~9
因為Arduino Uno只有提供14支數位的輸出腳，所以我們用6x6的格子來畫
所以6+6=12支腳，另外我們正腳位使用7,2,8,12,1,14
對應Arduino的數位輸出腳1~6 , 負腳位依此類推

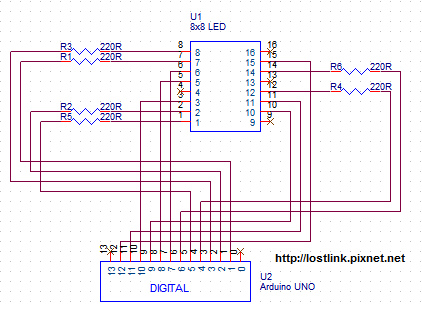

根據這個電路圖，在每個LED正腳位回到DIGITAL輸出之間串220ohm的電阻
避免過大電流燒掉LED或是造成亮度不均的問題

接下來是原始碼

void num0(int a) //設定數字0要怎麼顯示，請參考上圖
{
digitalWrite(7, LOW); //把想亮的列設成Low，不想亮的設成High
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);

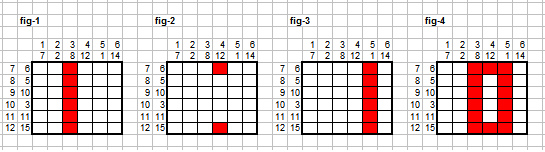

digitalWrite(3, HIGH); //把pin3設成High(+5V)，這時就會出現fig-1
delay(a); //停頓一個時間
digitalWrite(3, LOW); //把pin3設成Low，這時候就會全部不亮

digitalWrite(7, LOW); //把想亮的列設成Low，不想亮的設成High
digitalWrite(8, HIGH);
digitalWrite(9, HIGH);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH); //把pin4設成High(+5V)，這時就會出現fig-2
delay(a); //停頓一個時間
digitalWrite(4, LOW); //把pin4設成Low，這時候就會全部不亮

digitalWrite(7, LOW); //把想亮的列設成Low，不想亮的設成High
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH); //把pin5設成High(+5V)，這時就會出現fig-3
delay(a); //停頓一個時間
digitalWrite(5, LOW); //把pin5設成Low，這時候就會全部不亮
}
//由於delay的時間非常短，利用人眼視覺暫留的方式快速的亮暗每一行
//最後眼睛就會看到0這個數字，也就是fig-4
//下列1~9的字型，就按照數字0的方式編寫
void num1(int a)
{
digitalWrite(7, HIGH);
digitalWrite(8, LOW);
digitalWrite(9, HIGH);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, HIGH);
digitalWrite(8, HIGH);
digitalWrite(9, HIGH);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num2(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num3(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num4(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, HIGH);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num5(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num6(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num7(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, HIGH);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, HIGH);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num8(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, LOW);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void num9(int a)
{
digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(3, HIGH);
delay(a);
digitalWrite(3, LOW);

digitalWrite(7, LOW);
digitalWrite(8, HIGH);
digitalWrite(9, LOW);
digitalWrite(10, HIGH);
digitalWrite(11, HIGH);
digitalWrite(12, HIGH);
digitalWrite(4, HIGH);
delay(a);
digitalWrite(4, LOW);

digitalWrite(7, LOW);
digitalWrite(8, LOW);
digitalWrite(9, LOW);
digitalWrite(10, LOW);
digitalWrite(11, LOW);
digitalWrite(12, LOW);
digitalWrite(5, HIGH);
delay(a);
digitalWrite(5, LOW);
}
void setup() //設定Arduino的digital pin 1~12為輸出
{
pinMode(1, OUTPUT);
pinMode(2, OUTPUT);
pinMode(3, OUTPUT);
pinMode(4, OUTPUT);
pinMode(5, OUTPUT);
pinMode(6, OUTPUT);
pinMode(7, OUTPUT);
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
pinMode(10, OUTPUT);
pinMode(11, OUTPUT);
pinMode(12, OUTPUT);
}
int displayspeed = 50; //設定顯示每個數字間所花的時間
int blinking = 8; //設定一個數字閃爍的程度，這個值可微調
int a = 0; //設定一個參數a=0

void loop() //主程式
{
while(a < displayspeed) //讓0這個字多跑幾次迴圈，來達到數字0顯示的時間
{
num0(blinking); //把blinking=8這個值，塞入副程式的delay時間
a++;
}
a = 0; //重置a=0
while(a < displayspeed)
{
num1(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num2(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num3(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num4(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num5(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num6(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num7(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num8(blinking);
a++;
}
a = 0;
while(a < displayspeed)
{
num9(blinking);
a++;
}
a = 0;
}

以上
有問題的請發問
ps:我的code寫得很爛，請鞭小力一點.....XD
